Customization Process Example

Floral Pendant Design Specification Sheet

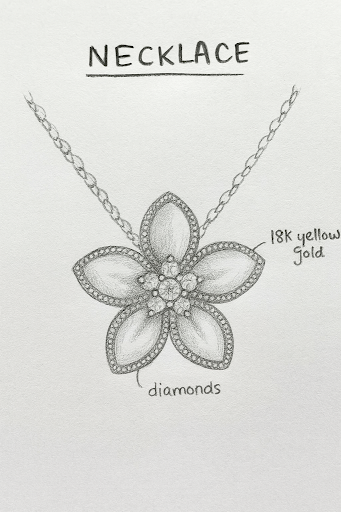

Sketch

Hand-drawn sketch of the floral pendant design.

CAD-Style Line Drawing

Clean CAD-style line drawing for technical manufacturing reference. (18K Yellow Gold)

General Design

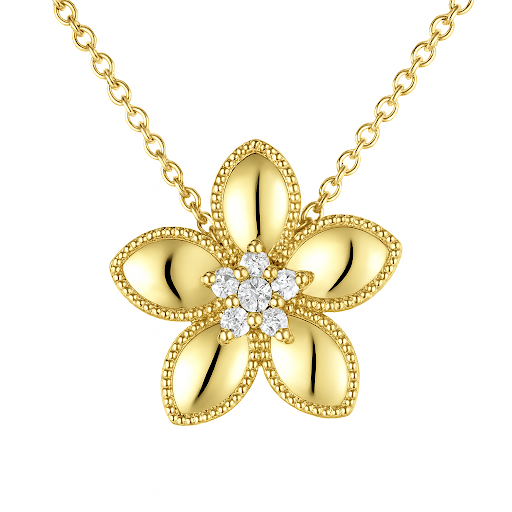

Five-petal floral pendant in 18K Yellow Gold with beaded (milgrain) edging. Each petal is marquise-shaped with soft curvature. Pendant center is a 7-stone diamond cluster.

Key Dimensions

• Petal aspect ratio: ~1.7 : 1 (length : width)
• Petal tip radius: 0.5 mm
• Petal length: ~7.5 mm (adjustable)
• Petal width: ~4.5 mm
• Milgrain border width: 0.30 mm
• Overall pendant diameter: ~16 mm

Gemstone Layout

• Center cluster: 7 round brilliant diamonds
• – 1 × 2.1 mm (center stone)
• – 6 × 1.5 mm (surrounding stones)
• Diamonds: VS1 clarity or higher, F-G color recommended

Materials

• Metal: 18K Yellow Gold
• Finish: High polish on petals, fine milgrain edge
